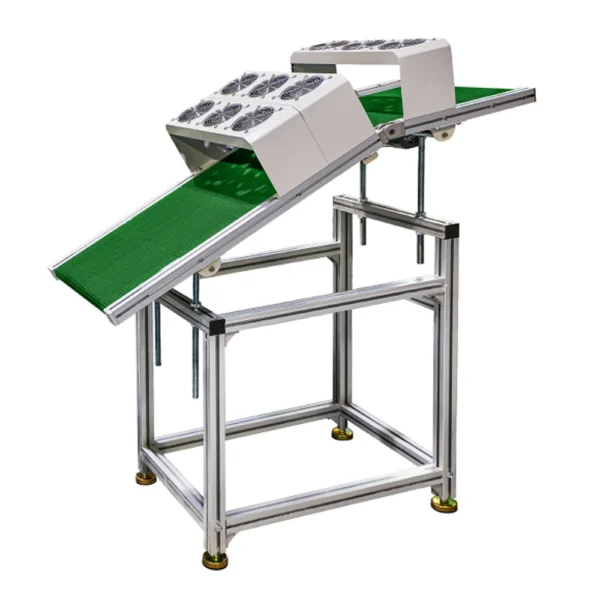

The DEZ Wave Soldering Cooling Conveyor receives hot PCB assemblies from the output of a wave soldering machine. Overhead fans provide forced-air cooling while an inclined ESD flat belt transfers the PCBA towards inspection, touch-up, AOI or unloading.
DEZ-400W and DEZ-500W models support PCB assemblies up to 530 × 460 mm. The conveyor direction, working height and machine dimensions can be configured to match the wave soldering machine and downstream production equipment.
| Parameter | Specification |
|---|---|
| Installation position | After wave soldering |
| Main function | Forced-air cooling and PCBA transfer |

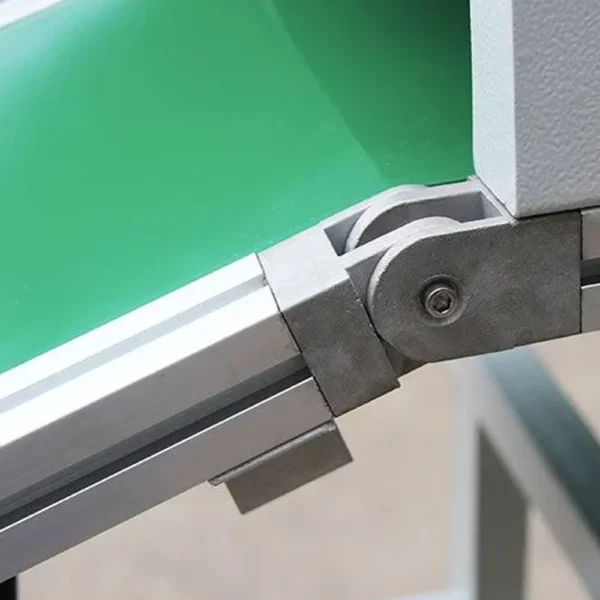

| Conveyor structure | Inclined ESD flat belt |
| PCB size | 50 × 50–530 × 460 mm |
| Conveyor speed | 0.5–20 m/min |
| Transfer direction | Left-to-right or right-to-left |
| Power supply | AC 110 V or 220 V, single phase |
| Available models | DEZ-400W and DEZ-500W |
PCB assemblies leaving a wave soldering machine may still be too hot for immediate manual handling, inspection or magazine storage.
The DEZ cooling conveyor creates a controlled transfer section between the wave soldering machine and the next production stage.
A typical process includes:

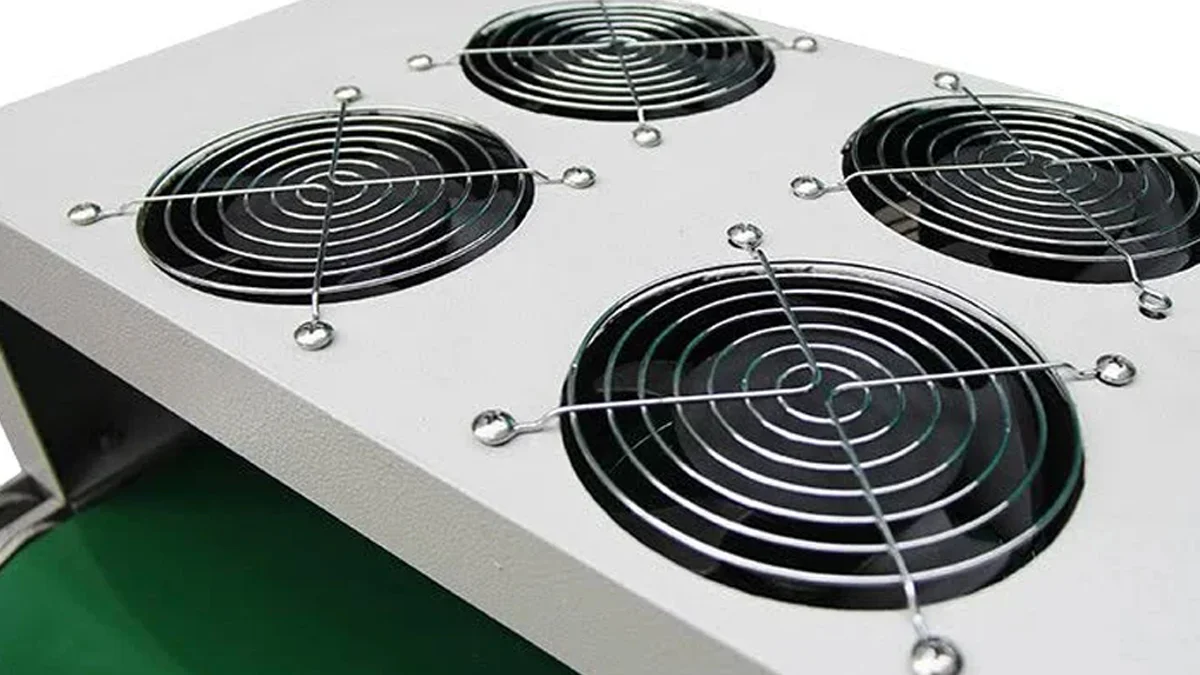

Overhead fan modules direct ambient air across newly soldered PCB assemblies while they travel along the conveyor. This provides a practical way to reduce PCBA temperature before the next operation without interrupting production flow.
Actual cooling performance depends on the PCBA entry temperature, board thickness, copper content, component mass, airflow, conveyor speed and effective cooling length. For this reason, the machine provides forced-air cooling but does not guarantee a fixed exit temperature without testing the actual PCB assembly.
Where a defined exit temperature is required, DEZ can perform a sample test using the customer’s PCB or soldering pallet and confirm the suitable conveyor speed and fan configuration.
| Parameter | DEZ-400W | DEZ-500W |
|---|---|---|
| PCB size | 50 × 50–445 × 350 mm | 50 × 50–530 × 460 mm |
| Conveyor speed | 0.5–20 m/min | 0.5–20 m/min |
| Listed conveyor height | 900 ±20 mm | 900 ±20 mm |
| Transfer direction | L→R or R→L | L→R or R→L |
| Conveyor type | Inclined flat belt | Inclined flat belt |
| Cooling method | Forced-air fans | Forced-air fans |
| Power supply | AC 110/220 V, single phase | AC 110/220 V, single phase |
| Listed maximum power | 100 VA | 100 VA |
| Machine dimensions | 1,200 × 520 × 1,400 mm | 1,200 × 620 × 1,400 mm |
| Machine weight | 35 kg | 45 kg |
| Custom dimensions | Available | Available |
| Model | Supported PCB Size | Machine Dimensions | Machine Weight |
|---|---|---|---|
| DEZ-400W | 50 × 50–445 × 350 mm | 1,200 × 520 × 1,400 mm | 35 kg |
| DEZ-500W | 50 × 50–530 × 460 mm | 1,200 × 620 × 1,400 mm | 45 kg |
We have worked with
No fixed exit temperature can be guaranteed from the standard specification alone. The result depends on the PCB assembly, entry temperature, airflow, cooling length, conveyor speed and ambient conditions.
The DEZ-400W supports PCB assemblies up to 445 × 350 mm. The DEZ-500W supports products up to 530 × 460 mm.
Yes, subject to confirmation of the pallet dimensions, loaded weight, exit temperature and compatibility with the flat belt.
The standard configuration uses fan-driven ambient air. Refrigerated or chilled-air cooling is not included in the confirmed specification.
The conveyor must be configured to match the machine’s exit height, angle, transfer direction, product support and control interface. Provide the wave soldering model and line drawing before ordering.
Yes. Conveyor dimensions, transport direction and working height can be customised. Additional fan or control requirements must be confirmed during engineering review.
Contact DEZ for PCBA cleaning machine, selective soldering machine, stencil cleaning machines, X-ray inspection, BGA rework, reflow ovens and SMT handling equipment.
Send your workpiece dimensions, production problem and required throughput to receive a free application review, equipment recommendation and project quotation. Free sample testing is available for qualified projects.
An equipment specialist will contact you within one hour during business hours.
