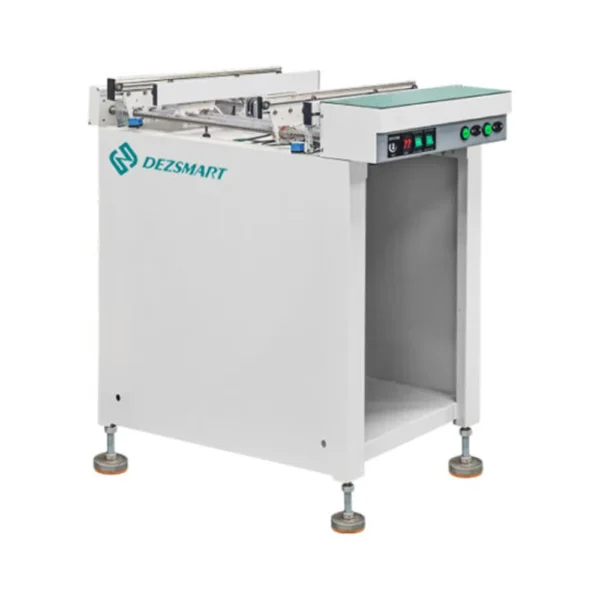

The DEZ SMT Dual Rail PCB Conveyor transfers PCBs through two parallel lanes between compatible dual-lane production equipment.
It can be installed between solder paste printers, pick-and-place machines, inspection equipment, reflow systems and downstream PCB handling machines. Adjustable conveyor speed, transfer direction, working height and machine length allow the conveyor to match different SMT line layouts.
Available in 500 mm and 1000 mm standard lengths, with customised configurations available for specific PCB dimensions and equipment interfaces.
The Dual Rail PCB Conveyor preserves two parallel board paths as PCBs move from one machine to another.
Unlike a single-lane linking conveyor, it accommodates two simultaneous PCB transport channels within one machine frame. This makes it suitable for SMT lines built around dual-lane printing, placement, inspection or unloading equipment.
Depending on the selected control configuration, the conveyor can support:
The conveyor is primarily used as a linking section between machines that already operate with two PCB transport lanes.

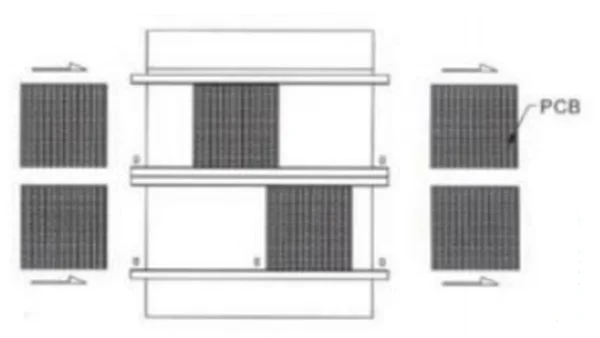

The dual rail structure provides two parallel transport channels aligned with compatible upstream and downstream equipment.

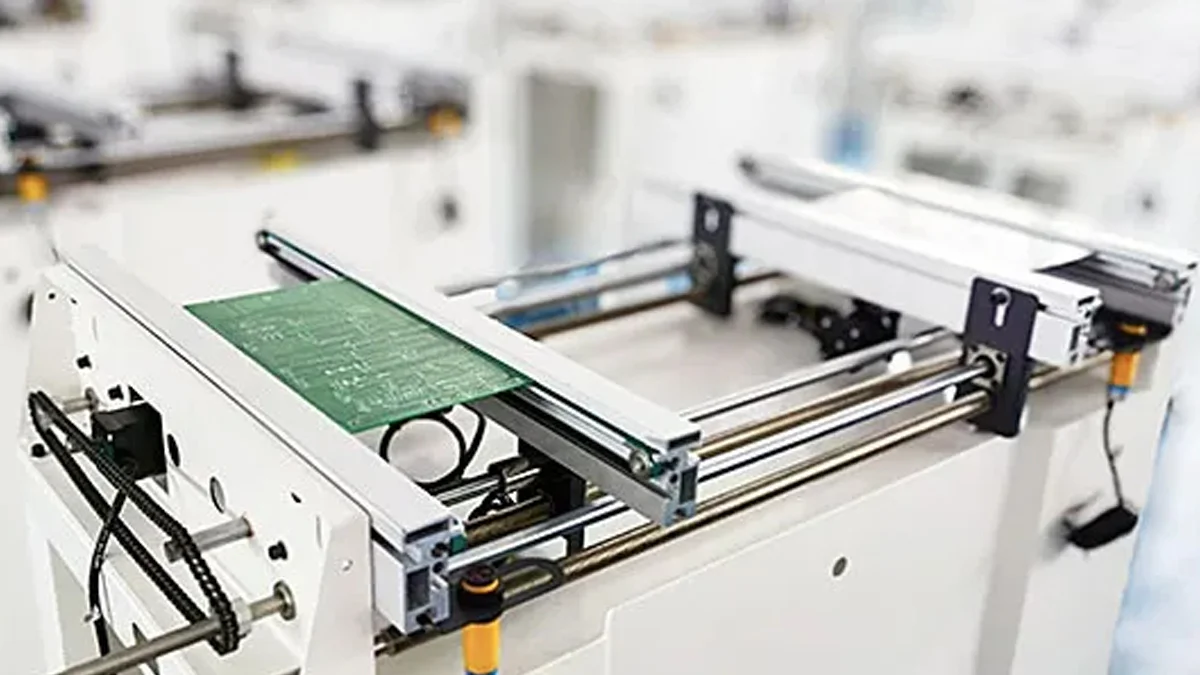

Each channel supports the PCB edges during transfer. The rail positions must be configured according to the board dimensions, available edge clearance and lane arrangement of the surrounding machines.
If two different PCB sizes will run at the same time, this requirement must be provided before quotation so that the rail adjustment and control arrangement can be confirmed.
| Parameter | Specification |
|---|---|
| Equipment function | Parallel PCB transfer between dual-lane SMT equipment |
| Number of lanes | Two |
| PCB size | 50 × 50–460 × 460 mm |
| Conveyor speed | 0.5–20 m/min |
| Standard conveyor lengths | 500 mm / 1000 mm |
| Belt type | Round belt or flat belt |
| Conveyor height | 900 ±20 mm or customer specified |
| Transfer direction | Left-to-right or right-to-left |
| Communication | SMEMA compatible |
| Power supply | AC 110 V or 220 V, single phase |
| Maximum power | 100 VA |
| Machine weight | 80 kg / 95 kg |
| Customisation | Length, height, direction and line configuration |
| Model | PCB Size | Machine Dimensions | Weight |
|---|---|---|---|
| DEZ-050S-N | 50 × 50–460 × 460 mm | 500 × 1046 × 900 mm | 80 kg |
| DEZ-100M-N | 50 × 50–460 × 460 mm | 1000 × 1046 × 900 mm | 95 kg |
We have worked with
We simplify your decision-making process, helping you save time.
Connects compatible dual-lane printing, placement, inspection and reflow processes.
Maintains two PCB transport paths where surrounding machines support parallel processing.
Can support separate production paths when the confirmed mechanical and control configuration allows different products to run on each lane.
Provides configurable PCB transfer between machines used for different customer projects.
Adds a compatible linking section when single-lane equipment is replaced with dual-lane production machinery.
Connects with a compatible Dual Lane PCB Magazine Unloader for automatic PCB collection at the end of the line.
Independent operation can be configured when the required motors, sensors, controls and communication signals are included. Confirm the operating sequence before quotation.
This depends on the rail arrangement and width-adjustment configuration. Provide the minimum and maximum PCB dimensions for both lanes before selection.
Not by itself. Converting between one PCB path and two paths normally requires a shuttle, splitter or routing conveyor.
The conveyor can stop or hold PCBs when the required sensors and control zones are included. It should not be treated as a dedicated buffer unless that function is specifically configured.
Yes. The standard product information specifies a SMEMA-compatible interface. The signal arrangement for each lane should be confirmed according to the surrounding equipment.
Yes. The standard height is 900 ±20 mm. Custom heights and left-to-right or right-to-left transfer are available.
Yes. PCB or carrier samples can be supplied for rail adjustment, sensing and transfer testing before shipment.
Contact DEZ for PCBA cleaning machine, selective soldering machine, stencil cleaning machines, X-ray inspection, BGA rework, reflow ovens and SMT handling equipment.
Send your workpiece dimensions, production problem and required throughput to receive a free application review, equipment recommendation and project quotation. Free sample testing is available for qualified projects.
An equipment specialist will contact you within one hour during business hours.
