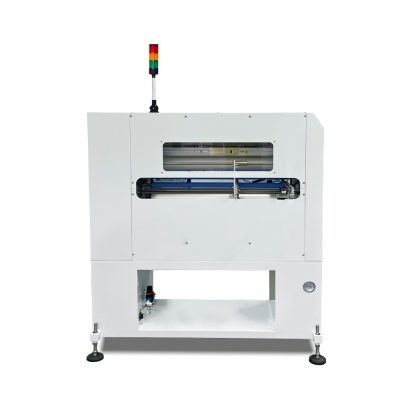

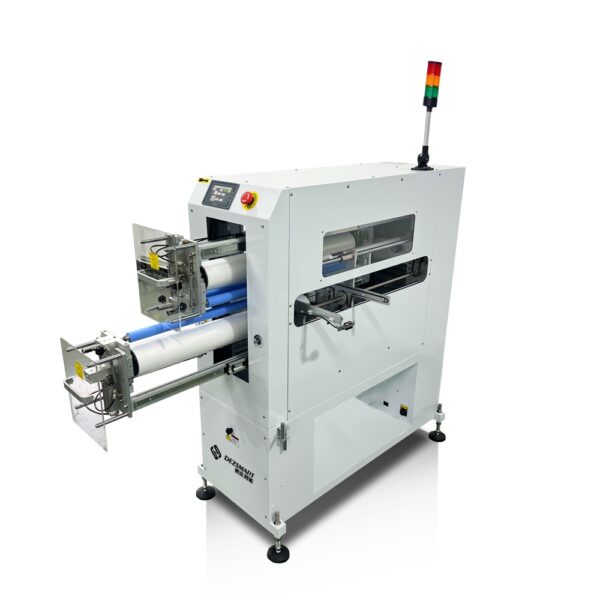

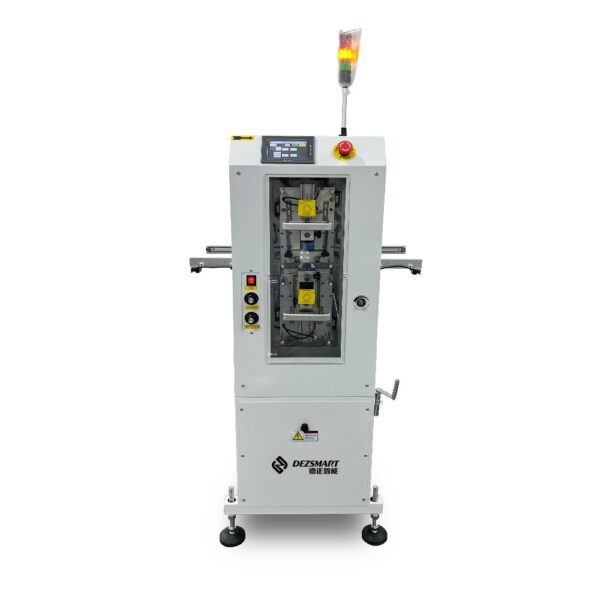

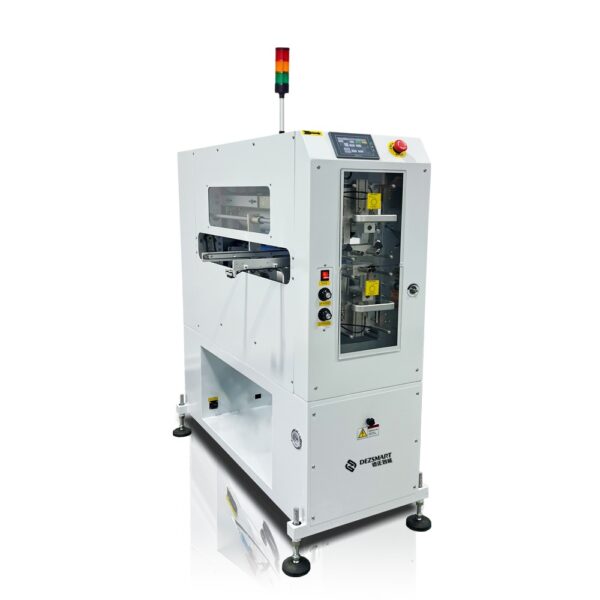

The DEZ-C753S is an automatic inline PCB cleaning machine designed to remove dust, fibres, hair, loose particles and static from both sides of bare PCBs before solder paste printing.
Three cleaning brushes, ionised air, dual vacuum extraction and front-and-rear sticky rollers work together in one continuous process. The machine supports PCBs from 50 × 50 mm to 350 × 350 mm and can be integrated between the PCB loader and solder paste printer.
Dust, fibres, hair and loose particles can reach bare PCB surfaces during storage, handling, unpacking and transfer through the production area. Static electricity can make fine particles more difficult to remove and may cause contamination to return after basic manual cleaning.
When contaminants remain on the PCB before solder paste printing, they can interfere with stencil contact, paste transfer and visual inspection. Manual air blowing may move particles to another area rather than collect them, while a single adhesive roller may not adequately handle every contaminant type.
The machine belongs to the DEZ range of PCB Cleaning Machines for bare-board surface preparation before SMT assembly.
Cleaning results depend on the contaminant, PCB surface, board design and production environment. Representative PCB testing is recommended before final machine selection.
Fine dust and loose powder can settle on PCB surfaces during storage, transport or handling. Vacuum extraction and sticky rollers collect particles released during the cleaning process.
Fibres and hair may not be removed effectively by airflow alone. Three cleaning brushes provide mechanical contact to loosen these contaminants before vacuum and roller cleaning.
Static electricity can cause fine particles to remain attached to the PCB or return after cleaning. Integrated static elimination helps reduce this attraction during processing.
Manual wiping and air blowing depend heavily on operator technique. Inline cleaning creates a repeatable process without requiring separate manual handling between loading and printing.
PCB Loader → DEZ-C753S PCB Cleaning Machine → Solder Paste Printer → SPI → Pick-and-Place → Reflow Oven
Installing the machine after the PCB loader and before the solder paste printer allows every bare PCB to pass through the same cleaning sequence before printing.

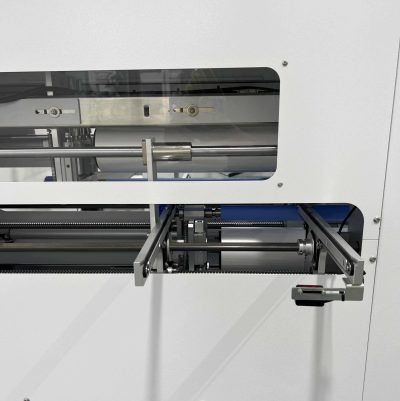

Left-to-right and right-to-left conveyor configurations are available. The fixed conveyor edge and production height should be confirmed according to the upstream and downstream equipment.
Important Equipment Distinction
The DEZ-C753S is intended for loose contaminant removal from bare or unpopulated PCBs. It is not designed to remove flux residues or ionic contamination from assembled circuit boards.
For post-soldering cleaning, visit PCBA Cleaning Machines or read the planned PCBA Flux Residue Cleaning Application.
| Specification | DEZ-C753S |
|---|---|
| Machine type | Automatic inline PCB cleaning machine |
| Cleaning capability | Double-sided |
| PCB dimensions | 50 × 50 – 350 × 350 mm (Corresponding to other models for large-sized boards) |
| PCB thickness | 0.4–3 mm (Special corresponding for boards below 0.4mm) |
| Conveyor height | 900 ± 25 mm |
| Cleaning brushes | 3 brushes |
| Vacuum dust collectors | 2 sets |

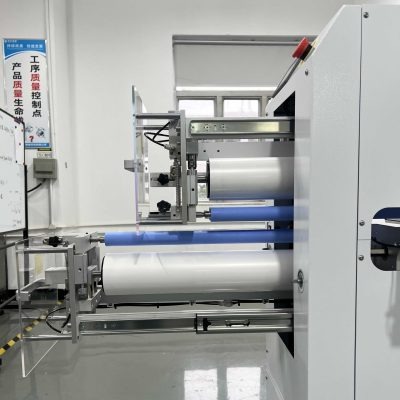

| Sticky dust rollers | Front and rear |
| Dust collection paper | 1 roll |
| Conveyor direction | Left to right or right to left |
| Conveyor fixed edge | Front-fixed or rear-fixed |
| Width adjustment | Manual |
| Optional width adjustment | Automatic |
| Static elimination | Built in |
| Optional static configuration | Enhanced static elimination |
| Air supply | 0.4–0.5 MPa |
| Power supply | AC 220 V, 50 Hz (Special voltage requirements must be specified) |
| Machine dimensions | 580 × 790 × 1280 mm |
| Machine weight | Approximately 120 kg |
We have worked with
We simplify your decision-making process, helping you save time.
PCB material, surface structure and contaminant type can influence the cleaning result. Customers can send representative boards to DEZ for testing before confirming the machine configuration.
The standard DEZ-C753S supports PCBs from 50 × 50 mm to 350 × 350 mm. DEZ can evaluate non-standard requirements when the PCB format, conveyor interface or production environment falls outside the standard configuration.
DEZ supports customers from sample evaluation and configuration confirmation through installation and production use.
Left-to-right and right-to-left configurations are available. The direction must be confirmed before production.
Yes. Manual width adjustment is standard, and automatic adjustment is optional.
Dust collection paper and cleaning-related wearing parts require periodic inspection and replacement. Replacement frequency depends on production volume and contamination level.
Yes. Representative PCB samples can be provided for testing before machine selection.
DEZ can evaluate non-standard PCB dimensions, conveyor configurations, enhanced static control and other line-integration requirements.
